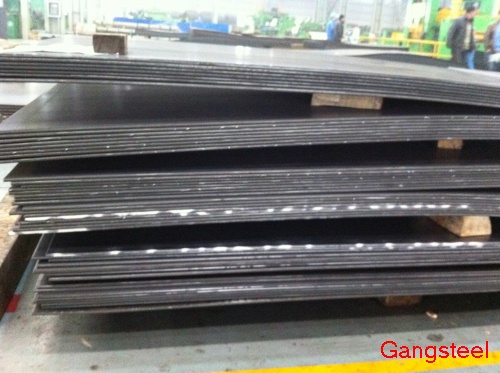

WYJ037-2006                      16MnR（R-HIC）

1 this technicalconditions apply to 8-130 mm of thickness in wet acidic conditions of use 16 MnR (R-HIC) steel plates.

2, size, shape, weight and allow deviation

The steel plate size and shape, weight and deviation should be allowed to meet the provisions of the GB6654, which, in thickness, are poor delivery, tolerance zone GB6654 according to overall up.



3. Mechanical properties:





thick（ mm）	REL MPa	Rm MPa	A %	180° Bend b=2a	0℃AKV,landscape （J）
					average value	single value
8-16	≥345	510-640	≥21	D=2a	≥34	≥24
＞16-36	≥325	490-620		D=3a
＞36-60	≥305	47-600
＞60-100	≥285	460-590	≥20
＞100-130	≥275	450-580
