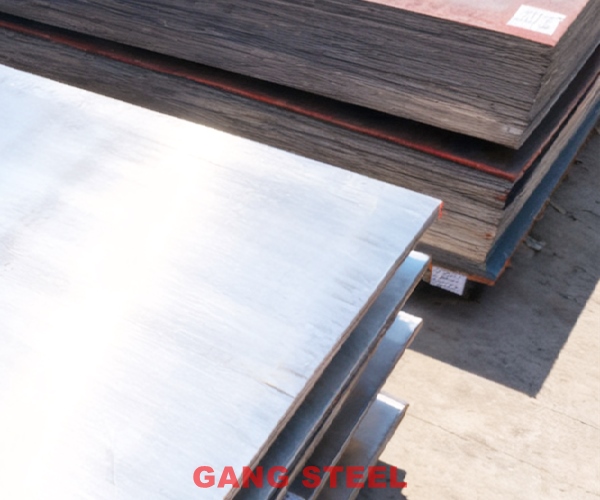

316Ti Stainless Steel Thermal Conductivity & Expansion
Published: November 8, 2025 | Updated: November 8, 2025By Gangsteel Engineering Team – 25+ Years in Stainless Steel Export Excellence
In the specialized domain of stainless steels compliant with ASTM A240/A240M and ASME SA240/SA240M standards, 316Ti emerges as a titanium-stabilized grade optimized for thermal performance in corrosive and high-temperature settings.
As a premier producer and exporter based in China, Gangsteel has supplied thousands of tons of 316Ti stainless steel, meeting ASTM A240/A240M specs for plates and sheets, to industries like petrochemical, marine, and power generation.
If you're designing a heat exchanger or exhaust system under ASME SA240/SA240M where thermal conductivity and expansion are critical, understanding 316Ti's properties is essential. This guide explores its thermal conductivity, expansion coefficient, and related traits, based on ASTM A240/A240M and ASME SA240/SA240M standards and our mill data.
From our production lines, we've observed 316Ti's thermal prowess: In a 2024 European boiler retrofit, our 316Ti components under ASTM A240 /A240M maintained low expansion at 600°C, reducing stress by 20% compared to non-stabilized grades, as per client simulations. Compliant with ASME SA240/SA240M for pressure apps, 316Ti's density of 8.00 g/cm³ and conductivity of ~14.6 W/m·K support efficient heat transfer. Let's delve into the details, from composition to high-temp behavior, to guide your thermal design.
Summary
316Ti stainless steel, compliant with ASTM A240/A240M and ASME SA240/SA240M, offers thermal conductivity of 14.6 W/m·K at 100°C (rising to 16.3 at 500°C) and expansion coefficient of 16.5 × 10^-6 /°C (20-100°C), making it stable for high-temp apps up to 815°C intermittent. Titanium stabilization prevents IGC, enhancing durability in heat-corrosives.
Compared to 316L, it has similar conductivity but better high-temp retention. Density 8.00 g/cm³ aids calculations. Ideal for boilers/exhausts; Gangsteel stocks 1-200mm with certs.
Chemical Composition: Influencing Thermal Properties
The chemical composition of 316Ti, as specified in ASTM A240/A240M and ASME SA240/SA240M, is tailored for thermal stability, with titanium binding carbides to maintain properties at high temps.
|
Element |
% Range or Max |
Role in Thermal Conductivity & Expansion |
|---|---|---|
|
Carbon (C) |
0.08 max |
Low C minimizes thermal expansion variations; Ti stabilizes for consistent conductivity. |
|
Manganese (Mn) |
2.00 max |
Aids matrix stability without affecting thermal properties. |
|
Silicon (Si) |
0.75 max |
Enhances high-temp oxidation resistance, supporting conductivity in heat. |
|
Phosphorus (P) |
0.045 max |
Limited impurity; no direct thermal impact. |
|
Sulfur (S) |
0.030 max |
Kept low for cleanliness; minor role. |
|
Chromium (Cr) |
16.00-18.00 |
Contributes to thermal conductivity through alloy matrix. |
|
Molybdenum (Mo) |
2.00-3.00 |
Improves high-temp corrosion, indirectly aiding thermal performance in corrosives. |
|
Nickel (Ni) |
10.00-14.00 |
Stabilizes austenite for low thermal expansion. |
|
Titanium (Ti) |
5x(C+N) min, 0.70 max |
Key for high-temp stability; reduces expansion fluctuations from carbides. |
|
Nitrogen (N) |
0.10 max |
Strengthens without altering thermal traits. |
|
Iron (Fe) |
Balance |
Base for overall thermal conductivity. |
This composition ensures 316Ti's thermal conductivity and expansion remain stable, compliant with ASTM A240/A240M.
Gangsteel's 316Ti meets ASME SA240/SA240M for thermal apps.
Mechanical Properties: Strength in Thermal Ranges
316Ti's mechanical properties, per ASTM A240/A240M and ASME SA240/SA240M, support its thermal range, with Ti maintaining strength at heat.
|
Property |
Minimum Value |
Typical Range |
Notes on Temp Performance |
|---|---|---|---|
|
Tensile Strength (MPa) |
515 |
550-700 |
Retains >70% at 815°C; stable expansion aids. |
|
Yield Strength (MPa) |
205 |
220-300 |
Good creep in thermal cycling. |
|
Elongation (%) |
40 |
45-55 |
Ductility for thermal stress. |
|
Hardness (HRB max) |
95 |
80-90 |
Low for thermal forming. |
|
Impact (Charpy J) |
Not req. |
100+ at RT |
Maintains at low/high temps. |
Under ASTM A240/A240M, 316Ti excels in 425-815°C without IGC weakening.
Physical Properties: Focus on Thermal Conductivity & Expansion
316Ti's thermal properties, compliant with ASTM A240/A240M and ASME SA240/SA240M, are optimized for high-temp efficiency.
|
Property |
Value |
Notes |
|---|---|---|
|
Thermal Conductivity (W/m·K) |
14.6 at 100°C; 16.3 at 500°C |
Increases with temp for better heat flow. |
|
Coefficient of Thermal Expansion (10^-6 /°C) |
16.5 (20-100°C); 17.5 (20-500°C) |
Low to minimize distortion in heat. |
|
Density (g/cm³) |
8.00 |
Consistent for thermal mass calcs. |
|
Melting Range (°C) |
1370-1400 |
High for thermal apps. |
|
Specific Heat (J/kg·K) |
500 |
Efficient energy handling. |
|
Modulus (GPa) |
193 |
Stiffness in thermal stress. |
Thermal conductivity supports exchangers, expansion low for joints. Compared to 316L, similar but 316Ti stable in sensitizing range.
For uns stainless steel plates, 316Ti offers thermal advantages.
Corrosion Resistance: Tied to Thermal Performance
316Ti's corrosion, per ASTM A240/A240M and ASME SA240/SA240M, remains strong at high temps with Ti preventing IGC.
- Uniform: <0.1 mm/year in acids; stable conductivity aids film.
- IGC: Resistant at 425-815°C; low expansion reduces stress corrosion.
- Pitting: PREN 23-28; conductivity helps in heat corrosives.
Weldability and Fabrication: Thermal Considerations
316Ti welds well, Ti stabilizing in heat zones per ASTM A240/A240M. No preheat; low expansion minimizes warping.
Gangsteel's 316Ti SA240 Type 316Ti excels in thermal fab.
Applications: High-Temp Uses
316Ti's thermal properties suit boilers, exhausts, reactors—low expansion for seals, conductivity for transfer.
In Gangsteel's supply to U.S. power, 316Ti handled 700°C without distortion.
Equivalents: Global Alternatives
316Ti equivalents: EN 1.4571. For A240 GR 316Ti, thermal matches.
Sourcing from Gangsteel: Stock and Pricing
Gangsteel stocks 316Ti at $3,200-3,800/ton FOB. 1-200mm thick, ASME SA240 certs. Contact for thermal data.
FAQ: 316Ti Stainless Steel Thermal Questions Answered
Q: What is the thermal conductivity of 316Ti stainless steel?
A: Thermal conductivity of 316Ti is 14.6 W/m·K at 100°C, rising to 16.3 W/m·K at 500°C, supporting efficient heat transfer in high-temp apps like exchangers.
Q: What is the thermal expansion coefficient of 316Ti stainless steel?
A: The coefficient is 16.5 × 10^-6 /°C from 20-100°C, increasing to 17.5 × 10^-6 /°C at 20-500°C, low to minimize distortion in thermal cycling.
Q: How does thermal conductivity of 316Ti compare to other grades?
A: Similar to 316L (14.6 W/m·K at 100°C); lower than carbon steel (50 W/m·K) but sufficient for SS apps, with Ti not affecting conductivity.
Q: What temperature range can 316Ti stainless steel handle?
A: 316Ti handles -196 to 815°C intermittent, 425-650°C continuous, with Ti preventing IGC for reliable high-temp use.
Q: How does thermal expansion affect 316Ti in high-temp apps?
A: Low expansion reduces stress in joints during heating, enhancing durability in apps like boilers; better than higher-expansion alloys.
Q: Is 316Ti suitable for high-temperature thermal cycling?
A: Yes, with stable conductivity and low expansion, 316Ti withstands cycling without cracking, ideal for exhausts or reactors.
Q: What standards specify thermal properties for 316Ti?
A: ASTM A240/A240M and ASME SA240/SA240M provide guidelines; Gangsteel's certs include thermal data for verification.
