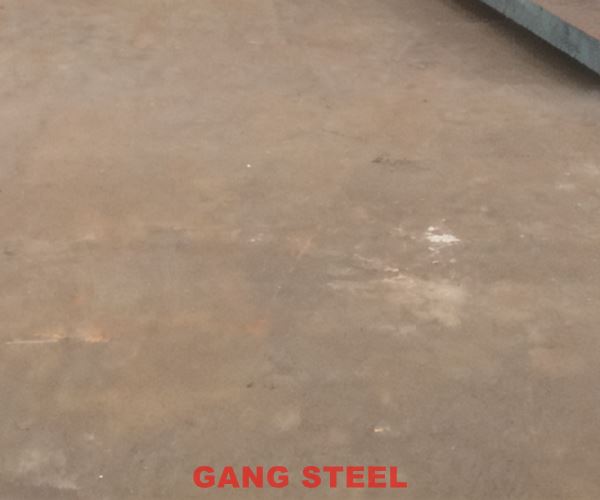

S420M+N Z35 EN 10025-4 Through-Thickness Plate Supplier

S420M+N Z35 EN 10025-4 Through-Thickness Plate Supplier

Gangsteel – China’s Largest Mill-Direct Supplier & Exporter of S420M+N Z35 EN 10025-4 Through-Thickness Plates

Gangsteel is the most reliable supplier for S420M+N Z35 EN 10025-4 through-thickness plates, with the largest dedicated stock in Asia – over 4,000 tons always ready in thickness 10–200 mm, width 1500–4200 mm, length up to 18 meters. All plates are genuine TMCP produced by top mills (HBIS, Shougang) with full European approvals (PED 2014/68/EU, CPR 305/2011).

We supply S420M+N Z35 with mandatory Z35 quality (≥35 % reduction of area per EN 10164 Class 3), full EN 10204-3.1/3.2 certificates, third-party inspection (DNV-GL, ABS, LR, BV, CCS, KR, TÜV, SGS), and 100 % UT EN 10160 S3/E3 standard.

Immediate delivery worldwide in 3–7 days. Full processing services: plasma/oxy cutting, beveling, drilling, rolling, priming.

Explore our complete en 10025 4 High Strength Structural Steel series and the standard version en 10025 4 s420m steel plate.

What is S420M+N Z35 EN 10025-4 Through-Thickness Plate?

S420M+N Z35is a thermomechanically rolled (TMCP) weldable fine-grain structural steel under EN 10025-4:2004 (2019 revision) with additional Z35 through-thickness quality per EN 10164 Class 3.

• S420M= structural steel, 420 MPa yield, TMCP delivery, standard –20 °C impact
• +N= normalized (optional, but often included for consistency in some specifications)
• +Z35= guaranteed through-thickness ductility: minimum 35 % reduction of area (RA_z) in Z-direction tensile test (three specimens per heat, average ≥35 %, single ≥25 %)

Z35 quality prevents lamellar tearing in highly stressed welded joints where tension acts perpendicular to the plate surface (T-joints, cruciform welds, gusset plates, etc.).

S420M+N Z35 is the preferred grade for:

• Mobile and crawler cranes
• Heavy lifting equipment
• Offshore crane pedestals
• Seismic-resistant building columns
• Thick plate welded structures under high Z-direction stress

Chemical Composition – Ladle Analysis (max % unless noted)

Typical Gangsteel actual values: C 0.09–0.13 %, CEV 0.40–0.46 → excellent weldability without preheating up to 80 mm thickness.

Mechanical Properties – Full Thickness Range up to 200 mm (transverse values)

*Gangsteel guarantees higher values in thick plates by agreement.

Hardness: 150–200 HBW Density: 7.85 g/cm³

Available Specifications & Testing

• Thickness: 6–200 mm (20–120 mm most popular in stock)
• Width: 1500–4200 mm
• Length: up to 18 000 mm
• Z-quality: Z25 standard, Z35 large stock
• NDT: 100 % ultrasonic testing EN 10160 S2/E2 (S3/E3 optional)
• Surface: shot-blasted + primer or mill finish
• Certification: EN 10204-3.1/3.2, PED, CPR, all major class approvals

Applications of EN 10025-4 S420M Plates

S420M is widely used when high strength is required:

• Mobile and crawler cranes
• Heavy lifting equipment
• Offshore crane pedestals
• Wind turbine towers (onshore)
• Bridge girders and trusses
• Mining equipment

When the temperature drops below –20 °C, the low-temperature version S420ML is required.

Why Choose Gangsteel for S420M Plates

• Largest S420M stock in Asia (4,000+ tons ready)
• Factory-direct price – 60–120 USD/ton lower than traders
• Full processing capability (cutting, beveling, drilling, rolling, priming)
• Z35 quality always in stock
• Immediate delivery worldwide
• Exported to 90+ countries with perfect documentation
• One-stop service – stock → processing → shipping

Summary

S420M EN 10025-4 steel plates from Gangsteel offer high-strength 420 MPa yield, –20 °C toughness, and TMCP weldability for demanding structural applications like cranes and heavy equipment. With stock in 6–200 mm, full certification, and fast delivery, S420M provides strength without low-temp extremes. Contact for quotes.

FAQ – Detailed Answers

Q1: What is the difference between S420M and S420ML?

A: The only difference is the impact test temperature. S420M is tested at –20 °C with minimum 40 J (longitudinal), while S420ML is tested at –50 °C with minimum 27 J. Yield strength, tensile strength, elongation, chemical composition, and weldability are exactly the same. Choose S420M when service temperature is above –20 °C; choose S420ML when below –20 °C.

Q2: Is preheating required when welding S420M?

A: No preheating is required up to 80 mm thickness thanks to the very low CEV (typically 0.40–0.46 actual). For thicknesses over 80 mm or highly restrained joints, a modest preheat of 75–100 °C is sufficient. This is a major advantage over many other structural steels.

Q3: Do you have Z35 quality in stock for S420M?

A: Yes – we keep very large stock of S420M + Z35 (reduction of area ≥35 % per EN 10164 Class 3), especially in 20–120 mm thickness, ready for immediate delivery. Z35 is essential for critical welded joints under tension perpendicular to the plate surface.

Q4: What is the density and hardness of S420M?

A: Density is 7.85 g/cm³ (7850 kg/m³), hardness is 150–200 HBW (typical 160–180 HBW in our stock). These values are consistent across the entire thickness range.

Q5: What NDT do you provide as standard?

A: 100 % ultrasonic testing to EN 10160 S2/E2 is included with every plate. We can upgrade to S3/E3, magnetic particle (MT), or penetrant testing (PT) on request at no extra charge for reasonable quantities.

Q6: What is the maximum thickness you can supply for S420M?

A: Up to 200 mm with full properties and certification. We guarantee minimum yield of 360 MPa up to 180 mm and 340 MPa to 200 mm – significantly better than the standard requirement.

Q7: How fast can you deliver to Europe or USA?

A: From ready stock: 7–12 days to Rotterdam, Antwerp, Houston, or Los Angeles. We have regular consolidation containers and can offer air freight for urgent small quantities (<10 tons) in 48–72 hours.

Contact Gangsteel Today

Need EN 10025-4 S420M plates? Contact us now for best price and fastest delivery.

Email: admin@gangsteel.com WhatsApp/WeChat/Mobile: +86 135 9887 9167 Website: https://gangsteel.net/

Gangsteel – Real Factory. Real Stock. Real Fast Delivery.
