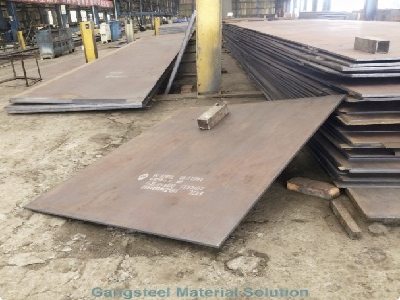

ASME SA516 Gr 60 (SA516GR60) Boiler Steel Plate



The ASME SA516 Gr 60 (SA516GR60) boiler steel plate is a high-quality carbon steel engineered for pressure vessels and boilers operating in moderate and low-temperature environments, offering excellent toughness and weldability.

As a leading supplier of ASME SA 516 GR 60 in China, Gangsteel delivers premium plates compliant with ASME SA516/SA516M standards, ideal for industries such as oil and gas, petrochemical, and power generation. This boiler quality steel plate for oil and gas is designed for applications requiring resistance to corrosion and high-pressure conditions, with optional HIC and NACE MR0175 compliance for sour gas environments. Gangsteel provides large stock, rapid global delivery, and competitive pricing, making us your trusted partner for pressure vessel steel plate for sour gas environments.



1. What is ASME SA516 Gr 60 Boiler Steel Plate?



ASME SA516 Gr 60 (SA516GR60) is a normalized carbon steel plate designed for welded pressure vessels and boilers, offering a minimum yield strength of 220 MPa and excellent notch toughness. Equivalent to ASTM A 516 GR 60, it is tailored for moderate and low-temperature service, making it suitable for storage tanks, heat exchangers, and reactors in industries like oil and gas.



The ASME SA 516 GR 60 plate is valued for its balance of strength and ductility, ensuring reliability in demanding applications. Gangsteel’s plates meet ASME, EN, JIS, and DIN standards, providing seamless integration into global projects such as refineries and power plants.



2. Chemical Composition of ASME SA516 Gr 60



The chemical composition of ASME SA516 Gr 60 is optimized for weldability and corrosion resistance:

Element

Thickness <12.5mm

12.5-50mm

50-100mm

100-200mm

>200mm

Carbon (C)

≤ 0.21

≤ 0.23

≤ 0.25

≤ 0.27

≤ 0.27

Silicon (Si)

0.13-0.45

0.13-0.45

0.13-0.45

0.13-0.45

0.13-0.45

Manganese (Mn)

0.55-1.30

0.79-1.30

0.79-1.30

0.79-1.30

0.79-1.30

Phosphorus (P)

≤ 0.035

≤ 0.035

≤ 0.035

≤ 0.035

≤ 0.035

Sulfur (S)

≤ 0.035

≤ 0.035

≤ 0.035

≤ 0.035

≤ 0.035

This ASME SA516 Gr 60 chemical composition features low carbon and tight impurity controls, ensuring excellent weldability and resistance to hydrogen-induced cracking (HIC), ideal for pressure vessel steel plate for oil refineries.



3. Mechanical Properties of ASME SA516 Gr 60



The mechanical properties of SA516 Gr 60 ensure reliable performance in pressure vessel and boiler applications:

Property

Value

Yield Strength (Min MPa)

220

Tensile Strength (MPa)

415-550

Elongation (in 200mm, min %)

25

Elongation (in 50mm, min %)

29

Charpy Impact (at -46°C, optional)

≥ 27 J

These ASME SA516 Gr 60 mechanical properties provide excellent toughness and ductility, making it suitable for low-temperature, high-pressure environments with optional impact testing for enhanced safety.



4. Equivalent Grades of ASME SA516 Gr 60



ASME SA516 Gr 60 aligns with international standards for global compatibility:

Standard

Equivalent Grade

ASTM

ASTM A 516 GR 60

EN 10028-2

P265GH

DIN 17155

HII

JIS G3115

SPV315

GB/T 1591

Q295R

BS 1501

161-430A/B

These ASME SA516 Gr 60 equivalent grades ensure seamless substitution in pressure vessel and boiler designs worldwide, supporting applications in diverse markets.



5. ASME SA516 Gr 60 vs ASTM A36 Steel



Comparing ASME SA516 Gr 60 vs A36 steel, SA516 Gr 60 is specifically designed for pressure vessels with normalized condition for superior notch toughness and a tensile strength of 415-550 MPa, compared to A36’s 400-550 MPa. A36, a general-purpose structural steel, has a slightly higher yield strength (250 MPa vs 220 MPa) but lacks the HIC/NACE compliance often required for boiler quality steel plate for petrochemical applications. SA516 Gr 60 is the preferred choice for high-pressure, corrosive environments, while A36 suits non-pressure structural uses.



6. ASME SA516 Gr 60 vs ASME SA516 Gr 70



When comparing ASME SA516 Gr 60 vs Gr 70, Gr 60 has a lower yield strength (220 MPa vs 260 MPa) and tensile strength (415-550 MPa vs 485-620 MPa), making it more ductile and easier to form for less demanding pressure vessel applications. Gr 70, with higher strength, is better suited for higher-pressure environments, while Gr 60 offers cost-effectiveness and flexibility for moderate conditions. Both grades support HIC/NACE testing for sour gas applications.



7. Applications of ASME SA516 Gr 60 Boiler Steel Plate



The ASME SA 516 GR 60 is widely used in:

  • Oil and Gas: Storage tanks and pipelines, with HIC/NACE compliance for pressure vessel steel plate for sour gas environments.
  • Petrochemical: Reactors and heat exchangers handling corrosive chemicals.
  • Power Generation: Boilers and steam drums for reliable high-pressure operation.
  • Chemical Industry: Vessels for processing aggressive media.
  •

Gangsteel’s expertise ensures compliance for these critical applications, delivering high-quality boiler quality steel plate for oil and gas.



8. Specification of ASME SA516 Gr 60 Boiler Steel Plate



Gangsteel offers customizable dimensions for SA516 Gr 60 to meet precise project requirements:

Dimension

Available Range

Thickness

6mm - 300mm

Width

1500mm - 4050mm

Length

3000mm - 18000mm

These specifications support tailored fabrication for boilers and pressure vessels, with tolerances adhering to ASME SA20 standards, ensuring precision for SA516GR60 boiler steel plate.



9. Available Sizes and Supply Conditions



Gangsteel maintains a robust inventory of ASME SA 516 GR 60, offering thicknesses from 6mm to 300mm, widths from 1500mm to 4050mm, and lengths up to 18000mm. Supply conditions include:

  • As-Rolled: Cost-effective for plates ≤ 40mm, suitable for standard boiler applications.
  • Normalized: For plates > 40mm, enhancing toughness and uniformity for high-pressure vessels.
  • HIC/NACE Tested: Compliant with NACE MR0175/ISO 15156 for sour gas environments, critical for oil and gas applications.
  • Custom Services: Plasma cutting, beveling, ultrasonic testing, and surface priming for corrosion resistance.

With over 10,000 tons in stock, Gangsteel ensures 7-15 day delivery to global markets, including Asia, the Middle East, Europe, and South America, with competitive ASME SA516 Gr 60 steel price per ton for bulk orders.



10. FAQ – Frequently Asked Questions about ASME SA516 Gr 60 Boiler Steel Plate



1. What is ASME SA516 Gr 60 used for?

ASME SA516 Gr 60 is used for boilers and pressure vessels in oil, gas, petrochemical, and power industries, ideal for boiler quality steel plate for oil and gas with HIC/NACE compliance for sour gas environments.

2. What are the mechanical properties of ASME SA516 Gr 60?

The ASME SA516 Gr 60 mechanical properties include a minimum yield strength of 220 MPa, tensile strength of 415-550 MPa, and elongation of 25% in 200mm, ensuring reliability in high-pressure applications.

3. What is the chemical composition of ASME SA516 Gr 60?

The ASME SA516 Gr 60 chemical composition features low carbon (≤ 0.27%) and stringent impurity controls for weldability and corrosion resistance.

4. What are the equivalent materials for ASME SA516 Gr 60?

Equivalents include ASTM A 516 GR 60, EN P265GH, JIS SPV315, and GB Q295R, per ASME SA516 Gr 60 equivalent grades, suitable for global boiler designs.

5. What is the difference between ASME SA516 Gr 60 and A36 steel?

SA516 Gr 60 is optimized for pressure vessels with superior toughness and HIC resistance, while A36 is for general structural use with lower strength, making ASME SA516 Gr 60 vs A36 steel preferable for high-pressure, corrosive environments.

6. What is the difference between ASME SA516 Gr 60 and Gr 70?

Compared to ASME SA 516 GR 70, Gr 60 has lower yield (220 MPa vs 260 MPa) and tensile strength (415-550 MPa vs 485-620 MPa), offering better ductility for forming in less demanding pressure vessel applications.

7. Where can I buy ASME SA516 Gr 60 plates in China?

Gangsteel, a leading ASME SA516 Gr 60 supplier China, offers stock-ready SA516GR60 boiler steel plate with HIC/NACE options for immediate delivery to global markets.

8. What is the price of ASME SA516 Gr 60 steel per ton?

The ASME SA516 Gr 60 steel price per ton varies based on quantity and specifications; contact Gangsteel for competitive quotes and bulk discounts tailored to your project needs.

9. What supply conditions are available for ASME SA516 Gr 60 plates?

Available in as-rolled, normalized, or HIC/NACE-tested conditions, with customization options like cutting, beveling, and testing to meet specific project requirements for pressure vessel steel plate for oil refineries.



11. Why Buy ASME SA516 Gr 60 from GANGSTEEL?



Gangsteel is a trusted ASME SA516 Gr 60 supplier China, offering an extensive inventory of SA516GR60 boiler steel plate with rapid 7-15 day delivery and MTC EN 10204 3.1 certification.

We provide value-added services such as plasma cutting, beveling, ultrasonic testing, and surface priming to ensure compliance with ASME, EN, JIS, and DIN standards. Explore related grades: ASME SA 516 GR 70, ASME SA 516 GR 55, ASTM A 516 GR 70, ASTM A 516 GR 55, ASTM A515, and EN 10028-2. Choose Gangsteel for your boiler quality steel plate for petrochemical applications needs and experience unmatched quality, reliability, and service.



Keywords: ASME SA516 Gr 60, boiler steel plate, pressure vessel steel
