S275M+Z35 EN 10025-4 Through-Thickness Plate Supplier

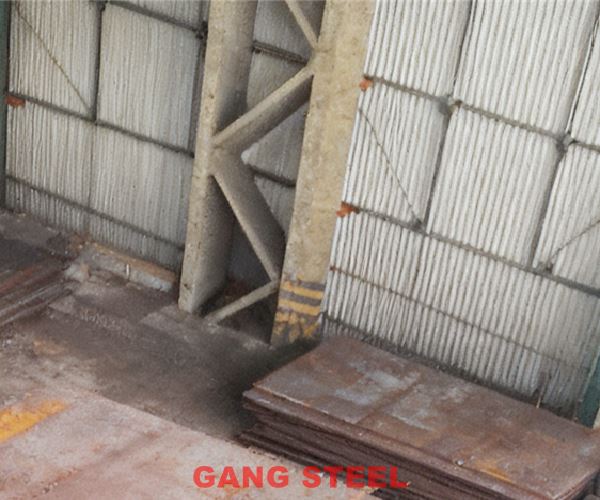

S275M_Z35_EN_10025-4_Through-Thickness_Plate

S275M+Z35 EN 10025-4 Through-Thickness Plate Supplier

Gangsteel – China's Largest Mill-Direct Supplier & Exporter of S275M+Z35 EN 10025-4 Through-Thickness Plates

Gangsteel is the most reliable supplier for S275M+Z35 EN 10025-4 through-thickness plates, with the largest dedicated stock in Asia – over 4,000 tons always ready in thickness 10–200 mm, width 1500–4200 mm, length up to 18 meters. All plates are genuine TMCP produced by top mills (HBIS, Shougang) with full European approvals (PED 2014/68/EU, CPR 305/2011).

We supply S275M+Z35 with mandatory Z35 quality (≥35 % reduction of area per EN 10164 Class 3), full EN 10204-3.1/3.2 certificates, third-party inspection (DNV-GL, ABS, LR, BV, CCS, KR, TÜV, SGS), and 100 % UT EN 10160 S3/E3 standard.

Immediate delivery worldwide in 3–7 days. Full processing services: plasma/oxy cutting, beveling, drilling, rolling, priming.

Explore our complete en 10025 4 High Strength Structural Steel series and the standard version en 10025 4 s275m steel plate.

What is S275M+Z35 EN 10025-4 Through-Thickness Plate?

S275M+Z35is a thermomechanically rolled (TMCP) weldable fine-grain structural steel under EN 10025-4:2004 (2019 revision) with additional Z35 through-thickness quality per EN 10164 Class 3.

S275M= structural steel, 275 MPa yield, TMCP delivery, standard –20 °C impact
+Z35= guaranteed through-thickness ductility: minimum 35 % reduction of area (RA_z) in Z-direction tensile test (three specimens per heat, average ≥35 %, single ≥25 %)

Z35 quality prevents lamellar tearing in highly stressed welded joints where tension acts perpendicular to the plate surface (T-joints, cruciform welds, gusset plates, etc.).

S275M+Z35 is the preferred grade for:

Light structural frames with critical welds
Onshore wind turbine towers
Heavy machinery bases
Bridge connection elements
Thick plate welded structures under high Z-direction stress

Chemical Composition – Optimized for Z35 Quality

Element	Ladle Max (%)	Product Deviation (%)	Typical Actual (%) – Gangsteel Z35 Stock	Role in Z35 Performance
C	0.14	+0.02	0.09–0.12	Low C for clean HAZ
Si	0.50	+0.05	0.20–0.40	Deoxidizer
Mn	1.50	+0.10	1.10–1.40	Strength without Z-weakness
P	0.030	+0.005	≤0.018	Min P for Z-cohesion
S	0.010	+0.003	≤0.005 (VD/VAR standard)	Ultra-low S for Z35 RA
Nb	0.05	+0.01	0.025–0.045	Grain refiner for uniform Z
V	0.10	+0.02	0.04–0.08	Precipitation
Al min	0.020	+0.030	0.030–0.050	Deoxidizer for clean Z
Ti	0.05	+0.03	0.015–0.035	Nitride for Z-isotropy
Cr	0.30	+0.05	0.10–0.25	Controlled
Ni	0.30	+0.05	0.15–0.25	–20 °C Z-toughness
Mo	0.10	+0.03	≤0.05	HAZ Z-stability
Cu	0.55	+0.03	0.20–0.35	Deoxidizer
N	0.015	+0.003	≤0.012	Low for Z-cleanliness
CEV max	0.38	N/A	0.32–0.36	Ultra-weld for Z-joints

S ≤0.005 % + Ca treatment standard for Z35.

Mechanical Properties – Full Thickness Range up to 200 mm (Transverse)

Thickness (mm)	ReH min (MPa)	Rm (MPa)	A5 min (%)	KV min (J, long. –20 °C)	Z35 RA min (%)
≤16	275	370–530	24	40	35
16<t≤40	265	370–530	24	40	35
40<t≤63	255	370–530	24	40	35
63<t≤80	245	370–530	24	40	35
80<t≤100	235	370–530	24	40	35
100<t≤120	235	360–520	24	40	35
120<t≤150	225	360–520	24	40	35
150<t≤200	215–225*	360–520	24	40	35

*Gangsteel guarantees higher values in thick plates.

Hardness 130–170 HBW; density 7.85 g/cm³.

Comparison Within the Standard

S275M+Z35 vs. family.

Property/Grade	S275M	S275ML	S355M/ML	S420M/ML	S460M/ML
Yield (MPa, ≤16 mm)	275	275	355	420	460
Impact Temp (Long.)	-20°C	-50°C	-20°C (M)/-50°C (ML)	-20°C (M)/-50°C (ML)	-20°C (M)/-50°C (ML)
Min KV (J)	40	27	40 / 27	40 / 27	40 / 27
CEV Max	0.38	0.38	0.39	0.43	0.48
Elong. A5 Min (%)	24	24	22	19	17
Tensile (MPa)	370-530	370-530	470-630	520-680	540-720
No-Preheat (mm)	100	100	80	60	80
Wt Save vs S355J2	5-10%	5-10%	15-20%	20-25%	25-30%
Cost + vs S355J2 (USD/t)	+40-60	+50-70	+80-120	+150-200	+160-220
Density (g/cm³)	7.85	7.85	7.85	7.85	7.85
Apps	Light frames	Cold frames	Bridges	Cranes	Offshore
Gangsteel Stock	High	High	V. High	Medium	Highest

S275M+Z35 "Z35 enhanced entry strength"; vs S275M, through-thickness; vs S355M, lighter cost; vs S420M, better ductility/weldability.

Equivalent International Grades

Z35 equivs.

Standard	Equivalent Grade	Key Match Notes	Typical Use Case
ASTM/ASME	A572 Gr.42 + Z35	Yield near; Z35 –20 °C	U.S. Z35 light structures
JIS G 3106	SM400B + Z35	Rm 400 MPa; ductility Z35	Japanese Z35 frames
GB/T 1591	Q275C + Z35	Standard Z35	China-EN Z35 projects
API 2H	Grade 42 + Z35	Offshore Z35 KV	Z35 platforms
EN 10025-6	S275QL + Z35	QT Z35; S275M cheaper	Heavy Z35 lifts

Indicative; TMCP Z35 better. Dual-cert. Full: S275M Equivalent Material EN 10025-4 Plate Supplier.

Applications & Design Considerations for S275M+Z35

Z35 for Eurocode 3, 5-10% less steel in welds.

Light Frames: Walkway trusses, Z35 tears; fatigue 10^7 cycles 140 MPa DNV-RP-C203.
Onshore Wind: Tower bases, enhanced KV; HIC Class 1.
Machinery: Chiller frames, A5 3% drifts EN 1998-1; C3M <0.1 mm/yr epoxy.
Fab: T-joints, 3t radius; 50 yr ICCP.

Notes: Interpass 150°C; ER42-2. FEA Z35 properties, 2% hardening. Eco: 97% recycle, 15% CO2 save. Gangsteel V-50°, UT S4. For weld, S355ML/NL Weldability EN 10025-4 Fine Grain Supplier; data S355ML Data Sheet EN 10025-4 Steel Properties Supplier.

Why Choose Gangsteel for S275M+Z35

4,000+ t Z35 stock.
Mill-direct 70-110 USD/t save; >700 MT tiers.
Process: laser ±0.4 mm, X-bevel, 140 mm bore, 500 mm roll, C5I 180 µm.
Cert: ISO 9001/14001, NACE sour, EN 1090 EXC4.
Legacy: Siemens 1,000+ t Z35 (Hornsea), Total (Ichthys)—OTIF 100%.

To 92+ countries: Rotterdam 7 days. For specs, S355ML Specification EN 10025-4 Steel Plate Supplier; comparison S355ML vs S355J2 EN 10025-4 Strength Comparison Supplier.

Summary

S275M+Z35 EN 10025-4 plates from Gangsteel provide guaranteed Z35 through-thickness ductility (RA_z ≥35%), 275 MPa yield, –20 °C toughness, and TMCP weldability for critical structural welds in light frames, onshore wind, and general fabrication. Stocked in 6–200 mm with full certification, Z35 eliminates lamellar tearing risk where standard Z25 fails. Contact for immediate supply.

FAQ

Q1: What is Z35 in S275M?

A: Z35 = ≥35% reduction of area in Z-direction tensile test (EN 10164 Cl.3), preventing lamellar tearing in welds under perpendicular stress. Useful for T-joints in light frames.

Q2: S275M+Z35 vs S275M difference?

A: Z35 adds through-thickness guarantee (RA_z ≥35%); standard S275M is Z25 (≥25%). Yield/impact same—Z35 for high-risk welds.

Q3: Welding preheat for S275M+Z35?

A: None to 100 mm (CEV 0.32-0.36); low-H E7018 H4. Thicker: 75-110 °C (EN ISO 13916). TMCP preserves Z35 in HAZ.

Q4: S275M+Z35 for pressure vessels?

A: Yes, PED III (EN 13445); derate >63 mm. UT S3/E3; RT opt seams. Z35 aids nozzle welds.

Q5: Z35 price premium?

A: +15-30 USD/t vs standard S275M; included in our Z35 stock.

Q6: ASTM equiv for S275M+Z35?

A: A572 Gr.42 + Z35; yield near, Z35 –20 °C. Dual-cert stocked.

Q7: Custom S275M+Z35 lead time?

A: Stock 1-3 days; processed 2-5 days; mill 3-5 weeks. 95% OTIF; air <10 MT 24-48 hrs.

Contact Gangsteel

For S275M+Z35 plates, quote now.

Email: admin@gangsteel.com WhatsApp/WeChat/Mobile: +86 135 9887 9167 Website: https://gangsteel.net/

Gangsteel—Z35 Guaranteed, Delivered Direct.
