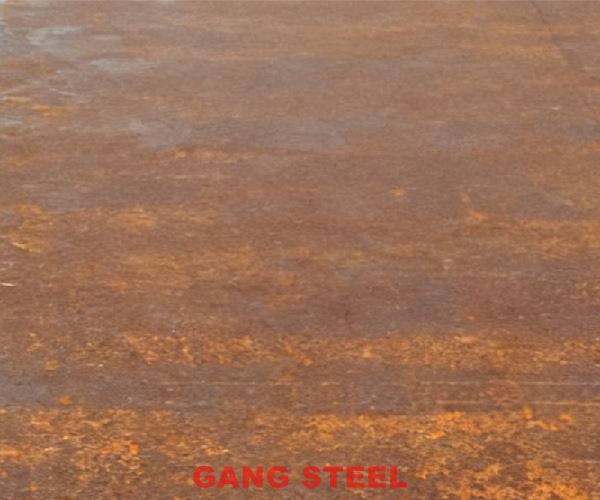

Gangsteel – China's Leading Mill-Direct Supplier & Exporter of S355ML Data Sheet EN 10025-4 Steel Properties Plates
Gangsteel is your definitive source for S355ML data sheet EN 10025-4 steel properties plates, providing downloadable data sheets with verified, heat-specific properties to accelerate your engineering, procurement, and compliance processes. As a thermomechanically rolled (TMCP) weldable fine-grain structural steel under EN 10025-4:2004 (2019 revision), S355ML's data sheet details minimum yield strength of 355 MPa, tensile range 470-630 MPa, elongation ≥22%, and low-temperature toughness ≥27 J at –50 °C longitudinal—critical for high-load, cold-environment structures. We stock over 5,000 tons of S355ML plates in thicknesses 6–200 mm, widths 1500–4200 mm, and lengths up to 18 meters, produced by premium mills like HBIS and Shougang with full PED 2014/68/EU and CPR 305/2011 certification. Each plate includes EN 10204-3.1/3.2 MTCs with full data sheet values, third-party inspections from DNV-GL, ABS, Lloyd's Register, Bureau Veritas, CCS, RINA, KR, TÜV, or SGS, Z25/Z35 through-thickness, and 100% UT EN 10160 S2/E2 testing.
S355ML data sheets from Gangsteel include spectrographic chemistry, tensile/yield/elongation per EN ISO 6892-1, Charpy V-notch per EN ISO 148-1 (sub-size for thick plates), hardness (HBW), density (7.85 g/cm³), and optional CTOD/KIc for fracture mechanics. At CEV ≤0.39, preheat-free welding to 80 mm is standard. Gangsteel data sheets support FEA under Eurocode 3 (EN 1993-1-1) with bilinear stress-strain (2% hardening), fatigue S-N curves (>10^7 cycles at 160 MPa), and buckling reduction (χ) for 15-20% weight savings vs S355J2. Fast 3–7 day delivery and processing (cutting, beveling, drilling, rolling, priming). Download sample data sheet or request heat-specific PDF. Explore our en 10025 4 High Strength Structural Steel series. For designation, S355ML Meaning EN 10025-4 Structural Steel Supplier.
The S355ML data sheet under EN 10025-4:2004 (2019) is the official technical document detailing all verified properties of this TMCP weldable fine-grain structural steel, where "S" means structural, "355" nominal yield 355 MPa (transverse ≤16 mm), "M" TMCP delivery, "L" –50 °C ≥27 J KV. Data sheets include ladle/product chemistry, mechanicals (yield, tensile, elongation, impact), physicals (density, hardness), and optional extras (Z-quality, CTOD).
TMCP—900-1100 °C rolling + 20-40 °C/s cooling—refines ferrite-bainite with microalloying (Nb/V/Ti), achieving ASTM 8-10 grains for isotropy. Data sheets verify CEV ≤0.39 for WPS (no preheat to 80 mm), density 7.85 g/cm³ for mass, hardness 140-180 HBW for machining. Yield governs allowable stress (f_y = ReH/γ_M0, γ_M0=1.0 Eurocode 3), with actual ReH 365-395 MPa typical. Impact per EN ISO 148-1 (10x10x55 mm, sub-size >40 mm) ensures DBTT < –60 °C.
Gangsteel data sheets are heat-traceable, supporting DNV-OS-B101 or AASHTO with CTOD (>0.4 mm) and KIc (>140 MPa√m at –40 °C). For chemical, S355ML Chemical Composition EN 10025-4 Supplier; mechanical, S355ML Mechanical Properties EN 10025-4 Plate Supplier.
|
Element |
Ladle Max (%) |
Product Deviation (%) |
Typical Actual (%) – Gangsteel Stock |
Role in Data Sheet Properties |
|---|---|---|---|---|
|
C |
0.14 |
+0.02 |
0.09–0.12 |
Low C for weld ductility in sheet |
|
Si |
0.50 |
+0.05 |
0.20–0.40 |
Deoxidizer for stable ferrite |
|
Mn |
1.60 |
+0.10 |
1.20–1.50 |
Strength for ReH 355 MPa |
|
P |
0.025 |
+0.005 |
≤0.018 |
Min P for grain cohesion |
|
S |
0.020 |
+0.005 |
≤0.015 |
Low S for inclusion-free KV |
|
Nb |
0.05 |
+0.01 |
0.02–0.04 |
Pins for fine grains/elongation |
|
V |
0.10 |
+0.02 |
0.04–0.08 |
Precipitates for Rm range |
|
Al min |
0.020 |
+0.030 (total) |
0.025–0.045 |
Deoxidizes for clean matrix |
|
Ti |
0.05 |
+0.03 |
0.01–0.03 |
Nitride for isotropy |
|
Cr |
0.30 |
+0.05 |
0.10–0.25 |
Controlled hardenability |
|
Ni |
0.50 |
+0.05 |
0.20–0.40 |
–50 °C transition |
|
Mo |
0.10 |
+0.03 |
≤0.05 |
HAZ stability |
|
Cu |
0.55 |
+0.03 |
0.20–0.35 |
Deoxidizer |
|
N |
0.015 |
+0.003 |
≤0.012 |
Low for properties |
|
CEV max |
0.39 |
N/A |
0.32–0.38 |
Weld index for ductility |
CEV = C + Mn/6 + (Cr+Mo+V)/5 + (Ni+Cu)/15. Equivs match. Full: S355ML Chemical Composition EN 10025-4 Supplier.
|
Thickness (mm) |
ReH min (MPa) |
Rm (MPa) |
A5 min (%) |
KV min (J, long. –50 °C) |
|---|---|---|---|---|
|
≤16 |
355 |
470–630 |
22 |
27 |
|
16<t≤40 |
345 |
470–630 |
22 |
27 |
|
40<t≤63 |
335 |
470–630 |
22 |
27 |
|
63<t≤80 |
325 |
470–630 |
22 |
27 |
|
80<t≤100 |
315 |
470–630 |
22 |
27 |
|
100<t≤120 |
305 |
450–610 |
22 |
27 |
|
120<t≤150 |
295 |
450–610 |
22 |
27 |
|
150<t≤200 |
285–295* |
450–610 |
22 |
27 |
*Agreement >150 mm; Gangsteel 295 MPa to 180 mm. Hardness 140-180 HBW; density 7.85 g/cm³. Curves: S355ML Mechanical Properties EN 10025-4 Plate Supplier.
S355ML data sheet vs. family.
|
Property/Grade |
S275M/ML |
S355M |
S355ML |
S420M/ML |
|---|---|---|---|---|
|
Yield (MPa, ≤16 mm) |
275 |
355 |
355 |
420 |
|
Impact Temp (Long.) |
-20°C (M)/-50°C (ML) |
-20°C |
-50°C |
-20°C (M)/-50°C (ML) |
|
Min KV (J) |
40/-20°C; 27/-50°C |
40/-20°C |
27/-50°C |
40/-20°C; 27/-50°C |
|
CEV Max |
0.38 |
0.39 |
0.39 |
0.43 |
|
Elong. A5 Min (%) |
24 |
22 |
22 |
19 |
|
Tensile (MPa) |
370-530 |
470-630 |
470-630 |
520-680 |
|
No-Preheat (mm) |
100 |
80 |
80 |
60 |
|
Wt Save vs S355J2 |
5-10% |
15-20% |
15-20% |
20-25% |
|
Cost + vs S355J2 (USD/t) |
+40-60 |
+80-120 |
+100-150 |
+150-200 |
|
Density (g/cm³) |
7.85 |
7.85 |
7.85 |
7.85 |
|
Apps |
Light frames |
Bridges |
Offshore |
Cranes |
|
Gangsteel Stock |
High |
V. High |
Highest |
Med |
S355ML data sheet balanced; vs S355M, –50 °C KV; vs S275ML, 30% stronger; vs S420ML, ductility. See S355M vs S355ML EN 10025-4 Steel Plate Comparison Supplier.
Data sheet equivs.
|
Standard |
Equivalent Grade |
Key Match Notes |
Typical Use Case |
|---|---|---|---|
|
ASTM/ASME |
A572 Gr.50 + Z35 |
Yield 345 MPa; data sheet align |
U.S. data sheet calc |
|
JIS G 3106 |
SM490A |
Rm 490 MPa; ductility data sheet |
Japanese data sheet FEA |
|
GB/T 1591 |
Q355E |
Low-temp data sheet |
China-EN data sheet |
|
API 2W |
Grade 50 |
Offshore data sheet |
Data sheet platforms |
|
EN 10025-6 |
S355QL |
QT data sheet; S355ML cheaper |
Heavy data sheet loads |
Indicative; TMCP data sheet better HAZ. Dual-cert. Full: S355ML Equivalent Material EN 10025-4 Plate Supplier.
Data sheet for Eurocode 3, 18% less steel.
Notes: Interpass 150°C; ER50-2. FEA data sheet input, 2% hardening. Eco: 97% recycle, 20% CO2 save. Gangsteel V-50°, UT S4. For weld data sheet, S355ML/NL Weldability EN 10025-4 Fine Grain Supplier.
To 92+ countries: Rotterdam 7 days. For full data sheet download, S355ML Data Sheet EN 10025-4 Steel Properties Supplier; comparison S355ML vs S355J2 EN 10025-4 Strength Comparison Supplier.
Q1: What is included in S355ML data sheet?
A: Full ladle/product chemistry, yield/tensile/elongation (EN ISO 6892-1), impact (EN ISO 148-1, sub-size opt), hardness, density, CEV, Z-quality, optional CTOD/KIc, welding data. Heat-specific PDF downloadable.
Q2: S355ML vs S355M data sheet difference?
A: Impact temp: S355ML –50 °C ≥27 J for cold (offshore/Arctic); S355M –20 °C ≥40 J for temperate. Yield/chem/elong/density same—ML for < –20 °C (DNV-OS-B101). Gangsteel stocks both with data sheets.
Q3: Welding preheat for S355ML data sheet?
A: None to 80 mm (CEV 0.32-0.38); low-H E7018 H4. Thicker: 70-120 °C (EN ISO 13916). TMCP low stress preserves data sheet properties; saves 50 °C vs J2; CET per heat WPS.
Q4: S355ML for pressure vessels data sheet?
A: Yes, PED III (EN 13445); derate >63 mm. UT S3/E3; RT opt seams. Data sheet aids fracture (KIc >140 MPa√m); cost-effective vs QT; dual ASME/EN.
Q5: Z35 in S355ML data sheet?
A: Z25 std; Z35 stocked (≥35% RA EN 10164 Cl.3) tension; +15-25 USD/t. Data sheet Norsok M-120 welds; density neutral.
Q6: ASTM equiv for S355ML data sheet?
A: A572 Gr.50 + Z35; yield 345 MPa, data sheet align –50 °C KV add. A633 Gr.C normalized; TMCP HAZ better. Dual-cert stocked.
Q7: Custom S355ML data sheet lead time?
A: Stock 1-3 days; processed 2-5 days; mill 3-5 weeks. 95% OTIF; air <10 MT 24-48 hrs; data sheet verified MTC.
For S355ML data sheet plates, quote now.
Email: admin@gangsteel.com WhatsApp/WeChat/Mobile: +86 135 9887 9167 Website: https://gangsteel.net/
Gangsteel—Data Sheet Precision, Project Ready.
