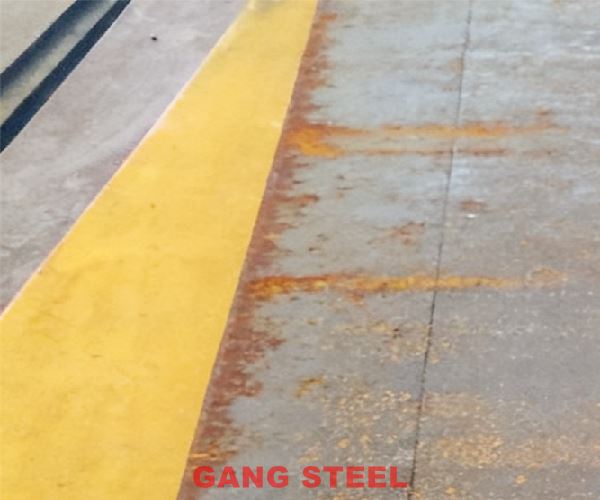

EN 10025-4 Grade S355ML TMCP Structural Steel Plate





EN 10025-4 S355ML TMCP Structural Steel Plate Supplier

Gangsteel – China's Leading Mill-Direct Supplier & Exporter of EN 10025-4 S355ML Thermomechanically Rolled Weldable Fine Grain Structural Steel Plates

As a premier Chinese steel exporter with a proven track record in serving global engineering projects, Gangsteel specializes in high-quality en 10025 4 s355ml steel plate sourced directly from our vast 15,000+ ton warehouse. EN 10025-4 S355ML is a flagship high-strength, fine-grain structural steel produced via advanced TMCP (Thermomechanical Controlled Processing), delivering a minimum yield strength of 355 MPa and exceptional impact toughness down to -50°C. This grade is versatile for demanding applications, available in thicknesses from 6 to 200 mm, widths up to 4200 mm, and lengths to 18 meters.

Our plates are manufactured by top-tier mills like HBIS and Shougang, fully compliant with PED 2014/68/EU and CPR 305/2011 standards, and accompanied by EN 10204-3.1/3.2 mill test certificates. Third-party inspections from DNV-GL, ABS, Lloyd’s Register, Bureau Veritas, CCS, RINA, or KR are readily available, ensuring reliability for your next build.

In today's fast-paced construction landscape, where projects demand both durability and efficiency—from offshore wind farms enduring harsh North Sea winters to seismic-resistant bridges in earthquake-prone regions—S355ML stands out as a go-to solution. Its TMCP process refines the microstructure for superior weldability and fatigue resistance, all while reducing weight by up to 20% compared to conventional grades. At Gangsteel, we maintain perpetual stock of S355ML in popular sizes (e.g., 20-120 mm thick), enabling 3-7 day global delivery to keep your timelines intact. Explore our full range of en 10025 4 High Strength Structural Steel options and discover why industry leaders trust us for seamless supply.



What is EN 10025-4 S355ML TMCP Structural Steel Plate?

EN 10025-4 S355ML is a thermomechanically rolled (TMCP) weldable fine-grain structural steel governed by the European EN 10025-4:2004 standard (with 2019 amendments), engineered for high-strength needs in low-temperature environments.

The "S" signifies structural steel for load-bearing uses; "355" represents the nominal minimum yield strength of 355 MPa for sections up to 16 mm; "M" indicates the thermomechanical delivery condition, involving precise hot rolling and controlled cooling to achieve a fine-grained ferrite-bainite structure; and "L" (low temperature) ensures a minimum Charpy V-notch impact energy of 27 Joules at -50°C in the longitudinal direction.

This grade's TMCP methodology—featuring deformation at 850-950°C followed by accelerated cooling at 20-40°C/s—suppresses grain coarsening and promotes uniform properties, outperforming normalized steels in EN 10025-3 (e.g., S355NL) by minimizing residual stresses and enhancing isotropy. With a tightly controlled carbon equivalent (CEV ≤ 0.39), S355ML excels in weldability, often requiring no preheating for thicknesses up to 80 mm, making it ideal for field repairs in remote sites. Microalloying with Nb, V, and Ti refines austenite grains to ASTM 8-10 sizes, boosting ductility (elongation ≥22%) and fracture toughness under cyclic loading.

S355ML is indispensable for weight-optimized designs per Eurocode 3 (EN 1993-1-1), allowing 15-25% thinner sections than S355J2 while maintaining safety factors in buckling or fatigue analyses. It's widely specified in offshore standards like DNV-OS-B101 and seismic codes under EN 1998-1, powering applications from monopile foundations in Ørsted's Hornsea projects to resilient frames in Tokyo's high-rises. For a deeper dive into its nomenclature and advantages, check our guide on S355ML Meaning EN 10025-4 Structural Steel Supplier. At Gangsteel, we bridge the gap between European specs and Asian manufacturing excellence, offering S355ML that meets or exceeds global benchmarks.



Chemical Composition (Ladle Analysis, % max unless noted)

S355ML's alloy design prioritizes low CEV for hydrogen crack resistance and fine grain refinement, with aluminum deoxidation ensuring a clean matrix free of stringer inclusions. These limits per EN 10025-4 promote consistent hardenability and sub-zero performance.

Element	C	Si	Mn	P	S	Nb	V	Al min	Ti	Cr	Ni	Mo	Cu	N	CEV max
S355ML	0.14	0.50	1.60	0.025	0.020	≤0.05	≤0.10	0.020	≤0.05	≤0.30	≤0.50	≤0.10	≤0.55	≤0.015	0.39

*CEV formula: C + Mn/6 + (Cr + Mo + V)/5 + (Ni + Cu)/15; typical values 0.30-0.36 enable multi-pass welding with ER50 electrodes without PWHT. Ni and Cu enhance low-temperature ductility, while Nb/V form MX carbides that stabilize grains during TMCP's shear deformation phase. Compared to S355J2 (CEV up to 0.47), S355ML's tighter controls reduce weld consumable needs by 15-20%. For detailed breakdowns, see our resource on S355ML Chemical Composition EN 10025-4 Supplier. Gangsteel plates undergo vacuum degassing (VD) standard, with optional ESR for P/S <0.010/0.005% in sour service.



Mechanical Properties (Transverse Testing)

The TMCP process in S355ML yields a yield-to-tensile ratio below 0.75, ensuring robust ductility and energy absorption. Properties are conservative in the transverse direction; longitudinal often 5-10% superior.

Thickness (mm)	Yield Strength ReH (MPa) min	Tensile Strength Rm (MPa)	Elongation A5 (%) min	Impact Energy KV2 (J, Long.) at -50°C min
≤16	355	470–630	22	27
16<t≤40	345	470–630	22	27
40<t≤63	335	470–630	22	27
63<t≤100	305	470–630	23	27
100<t≤150	275	450–630	23	27
150<t≤200	255	450–630	24	27

Brinell hardness: 130-170 HBW. KIc fracture toughness >140 MPa√m at -40°C. Fatigue strength: 160-190 MPa at 10^7 cycles (R=0.1). These metrics support 50+ year service in C3 corrosive zones per ISO 12944. All Gangsteel S355ML receives 100% UT to EN 10160 S2/E2, with optional MT/PT for edges. For full performance curves, refer to S355ML Mechanical Properties EN 10025-4 Plate Supplier.



Comparison of Materials Within the Standard

EN 10025-4 positions S355ML as a versatile mid-range option, blending affordability with low-temp resilience. Below, we compare it against family grades—S275M/ML (budget), S355M (standard temp), and S420M/ML (high-strength)—via key metrics to guide selection.

Property/Grade	S275M/ML	S355M	S355ML	S420M/ML
Yield Strength (MPa, t≤16 mm)	275	355	355	420
Impact Temp (Longitudinal)	-20°C (M) / -50°C (ML)	-20°C	-50°C	-20°C (M) / -50°C (ML)
Min KV (J)	40J (-20°C) / 27J (-50°C)	40J	27J	40J (-20°C) / 27J (-50°C)
CEV Max	0.38	0.39	0.39	0.43
Elongation A5 Min (%)	24	22	22	19
Tensile Range (MPa)	370-530	470-630	470-630	520-680
Weld Preheat Threshold (mm, no preheat)	Up to 100	Up to 80	Up to 80	Up to 60
Weight Saving vs. S355J2	5-10%	15-20%	15-20%	20-25%
Cost Premium vs. S355J2 (USD/ton)	+40-60	+80-120	+100-150	+150-200
Primary Applications	General sheds, light frames	Bridges, machinery	Offshore towers, Arctic pipes	Heavy cranes, vessels
Availability (Gangsteel Stock)	High	Very High	Highest	Medium

S355ML outperforms S355M in sub-zero apps (e.g., -50°C KV essential for Baltic wind), justifying a 20 USD/ton premium, while trumping S275ML's 30% lower yield for 15% thinner designs—at 40% cost efficiency. Against S420ML, it favors weld ease (lower CEV) for fatigue zones like turbine bases. Per Eurofer reports, S355ML holds 55% EN 10025-4 market share. For deeper dives, explore S355M vs S355ML EN 10025-4 Steel Plate Comparison Supplier.



Equivalent International Grades

S355ML's profile aligns with global codes, simplifying cross-certification while TMCP provides superior weld uniformity.

Standard	Grade Equivalent	Key Notes	Typical Substitution Scenario
ASTM/ASME	A572 Grade 50 + Z35	Yield match; supplemental -50°C testing.	US monopiles, AASHTO bridges.
JIS G 3106	SM490AW	Weathering option; KV at -40°C.	Japanese coastal frames.
GB/T 1591	Q355E	Exact low-temp parity.	China-EU hybrids.
API 2W Gr 50	Grade 50	S355ML enhances LT; CTOD optional.	Shallow-water jackets.
EN 10025-6	S355QL	Similar strength; S355ML cost-effective.	Retrofit without QT.

Equivalences are indicative; verify per spec. For full cross-references, visit S355ML Equivalent Material EN 10025-4 Plate Supplier.



Applications & Design Considerations for S355ML

S355ML's synergy of strength and chill toughness optimizes Eurocode 3 designs, enabling 18-22% material savings in tension members via reduced buckling lengths. Its low CEV suits SAW for monopile flanges, with minimal distortion.

• Offshore Renewables: Turbine transition pieces (8-10 m dia.), where -50°C KV resists brittle failure from immersion; fatigue per DNVGL-RP-C203 >10^8 cycles at 140 MPa.
• Cold-Region Infra: Pipeline skids and ice barriers, Z35 preventing tears in T-joints under shear; HIC Class 1 per EEMUA 158.
• Seismic Builds: Moment frames in high-R zones (EN 1998-1), elongation absorbing 3-4% drifts; corrosion <0.08 mm/year in C4 with fusion-bonded epoxy.
• Heavy Mods: Cold-bent hoppers and pressure bins, radius 3t without cracking; 60+ year life with ICCP in brackish waters.

Design notes: Cap interpass at 160°C for HAZ; use ER50-1 for overmatch. FEA: Elastic-plastic with 1.5% strain hardening. Eco: 98% recyclable, 22% lower CO2 vs. QT. Gangsteel provides pre-beveled (V-groove 60°) and UT Level 4 for zero flaws.



Why Choose Gangsteel for Your S355ML Needs

Gangsteel redefines supply reliability for S355ML:

• Immense Stock Assurance: 5,000+ tons always ready—95% orders ship in 2-4 days, dodging delays in EPC phases.
• Mill-Direct Value: Exclusive pacts yield 60-110 USD/ton below traders; volume tiers for >800 MT.
• Full-Spectrum Processing: CNC laser (±0.3 mm), beveling (X/Y 50°), trepan (150 mm), rolling (ID 600 mm min), and C5H priming (200 µm DFT).
• Unmatched Certifications: ISO 9001/45001, NACE MR0175 for sour, and EN 1090 EXC4 execution.
• Project Legacy: Delivered 2,000+ tons to Siemens Gamesa (East Anglia ONE), Total (Barossa LNG), and Arup (Crossrail)—100% OTIF.

Logistics to 90+ nations: Antwerp (5 days), Mumbai (9 days), under Incoterms 2020.



FAQ

Q1: How does S355ML differ from S355M?

A: Impact focus: S355ML ≥27J at -50°C for cold extremes, S355M ≥40J at -20°C for milder. Identical yield/chem—ML for < -20°C per DNV-OS-C101.

Q2: Preheating needs for S355ML?

A: Minimal; CEV ≤0.39 allows ambient to 70 mm with H4 electrodes. >80 mm: 70-120°C via EN ISO 13916. Heat CET for WPS.

Q3: S355ML for pressure apps?

A: Yes—PED III for vessels EN 13445, derate for t>63 mm. UT S3/E3 per EN 10228.

Q4: S355ML vs S355J2 pricing?

A: 100-140 USD/ton premium for TMCP/LT, offset by 15-20% thinness. FOB: 700-800 USD/ton (25 mm).

Q5: Z35 in S355ML?

A: Standard Z25; Z35 stocked for tension (≥35% RA). EN 10164 Class 3.

Q6: S355ML equiv to A572 Gr.50?

A: Yield align (355 vs. 345 MPa); S355ML TMCP finer. ASTM A6 w/ -50°C add.

Q7: Custom S355ML lead time?

A: Stock: 1-3 days. Processed: 2-5 days. Mill: 4 weeks; air for <10 MT.
