ABS FQ63 Steel Plate | FQ63 Shipbuilding Steel Plate

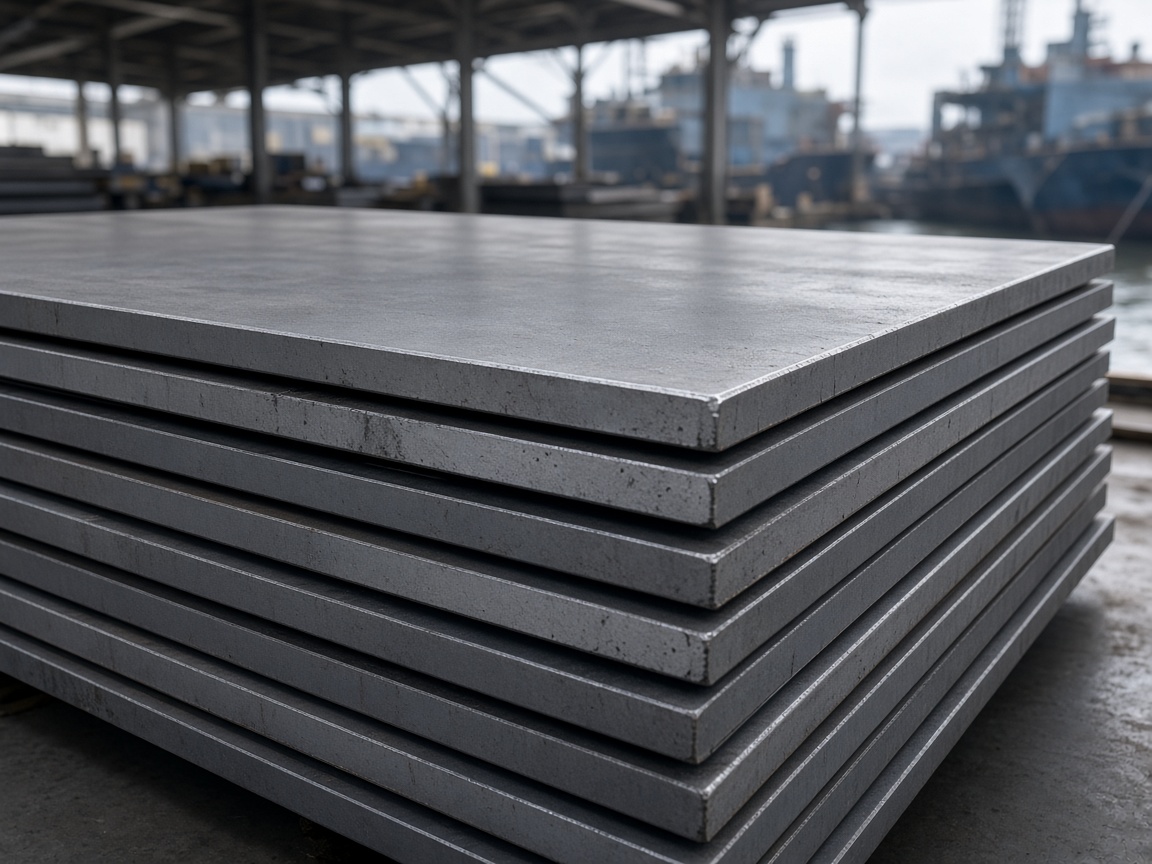

ABS FQ63 steel plate, also written as ABS/FQ63, ABS Grade FQ63, American Bureau of Shipping FQ63 or simply FQ63 steel plate, also called ABS EHS FQ63 or FQ63 shipbuilding steel, is an extra-high-strength, fine-grain structural steel of the ABS Rules for Materials and Welding (Part 2, Ch 1, Sec 3, extra high strength steels) with 620 MPa minimum yield (t ≤ 50 mm), 700-890 MPa tensile strength and Charpy V-notch toughness at -60°C [-76°F]. In the grade name "F" is the toughness class, "Q" marks the ABS extra-high-strength (quenched and tempered / TMCP) series and "63" is the yield level (63 kgf/mm² class, i.e. 620 N/mm²); the IACS UR W16 designation is FH620. Gangsteel, a steel plate exporter, supplies ABS FQ63 plates in TM or QT condition, cut to size for offshore platforms, jack-up legs and racks, ship structures and other heavy marine steelwork.
Data source: ABS Rules for Materials and Welding, Part 2, Chapter 1, Section 3 (extra high strength steels), which applies the IACS UR W16 requirements; values below are taken from IACS UR W16 Rev.4 Corr.1 (2026) and cross-checked with LR Rules for Materials Ch 3 Section 10 (LR FH62). Verify the current ABS Rules edition and the mill's ABS approval before ordering.
ABS/FQ63 Chemical Composition (Heat Analysis), %
| Element | TM | QT |
|---|---|---|
| C, max | 0.14 | 0.18 |
| Mn | 1.00-1.70 | 1.70 max |
| Si, max | 0.60 | 0.80 |
| P, max | 0.020 | 0.020 |
| S, max | 0.010 | 0.010 |
| Al total, min | 0.020 | 0.018 |
| Nb, max | 0.05 | 0.06 |
| V, max | 0.12* | 0.12 |
| Ti, max | 0.05 | 0.05 |
| Ni, max | 2.00 | 2.00 |
| Cu, max | 0.55 | 0.50 |
| Cr, max | 0.50 | 1.50 |
| Mo, max | 0.50 | 0.70 |
| N, max | 0.025 | 0.015 |
| B, max (if added) | 0.005 | 0.005 |
Ladle (heat) analysis per IACS UR W16 Table 1 (as adopted by ABS); all listed elements are to be reported. For TM and N/NR steels Nb+V+Ti ≤ 0.26% and Mo+Cr ≤ 0.65% (not applicable to QT). Total Al to N ratio at least 2:1 unless other nitrogen-binding elements are used. Higher Ni may be approved by ABS. *TM vanadium 0.12% max per IACS UR W16 Rev.4. Grades at this strength level are supplied only TM or QT (no N/NR route). The ABS Rules / IACS UR W16 give heat (ladle) analysis limits only for these grades and no separate product (check) analysis table, so only the heat analysis is shown. Values depend on IACS UR W16 / ABS Rules for Materials and Welding.
ABS FQ63 Carbon Equivalent (Ceq, CET, Pcm), max %
| Strength level / condition | Ceq, t ≤ 50 mm | Ceq, 50 < t ≤ 100 mm | Ceq, 100 < t ≤ 250 mm | CET | Pcm |
|---|---|---|---|---|---|
| H62 TM | 0.50 | 0.52 | N/A | 0.34 | 0.26 |
| H62 QT | 0.56 | 0.60 | 0.64 | 0.38 | 0.30 |
Plates, per IACS UR W16 Table 2 (as adopted by ABS) (IACS splits the last column into 100-150 and 150-250 mm; plate values shown). Ceq = C + Mn/6 + (Cr+Mo+V)/5 + (Ni+Cu)/15; CET = C + (Mn+Mo)/10 + (Cr+Cu)/20 + Ni/40 (H46 and above, at the manufacturer's discretion); Pcm = C + Si/30 + (Mn+Cu+Cr)/20 + Ni/60 + Mo/15 + V/10 + 5B (TM and QT steels with C ≤ 0.12%). N/A means not applicable. Values depend on IACS UR W16 / ABS Rules for Materials and Welding.
ABS/FQ63 Mechanical Properties
| Property | t ≤ 50 mm | 50 < t ≤ 100 mm | 100 < t ≤ 150 mm |
|---|---|---|---|
| Yield strength ReH, min | 620 MPa [90 ksi] | 580 MPa [84 ksi] | 560 MPa [81 ksi] |
| Tensile strength Rm | 700-890 MPa [102-129 ksi] | 700-890 MPa | 650-830 MPa [94-120 ksi] |
Per IACS UR W16 Table 4 (as adopted by ABS) for ABS/FQ63. Elongation on 5.65√S0: 15% min transverse, 17% min longitudinal. Where tensile properties must be maintained through the thickness (e.g. offshore racks), no reduction with thickness is permitted.
ABS FQ63 Elongation on 200 mm Gauge Length (25 mm wide flat specimen)
| Thickness, mm | ≤ 10 | 10-15 | 15-20 | 20-25 | 25-40 | 40-50 | 50-70 |
|---|---|---|---|---|---|---|---|
| Elongation, % min | 9 | 11 | 12 | 12 | 13 | 14 | 15 |
Transverse full-thickness specimens, per IACS UR W16 Table 5 (as adopted by ABS).
ABS FQ63 Charpy V-Notch Impact Requirements (-60°C [-76°F])
| Grade | Test temperature | Transverse, avg min | Longitudinal, avg min |
|---|---|---|---|
| ABS/FQ63 | -60°C [-76°F] | 41 J | 62 J |
Per IACS UR W16 Table 4 (as adopted by ABS): average of three full-size specimens; the same energy applies over the whole thickness range. Plates wider than 600 mm are tested transverse; above 50 mm thickness, specimens are taken at t/4 and additionally at t/2.
Delivery Condition and Deoxidation
ABS FQ63 is fully killed and fine-grain treated, made to an ABS-approved manufacturing specification. Permitted delivery conditions: TM or QT (TM includes TM with accelerated cooling and direct quench + tempering). Options by agreement: ultrasonic testing, Z15/Z25/Z35 through-thickness properties (vacuum degassed), and ABS survey with 3.2 certificate stating the specified maximum Ceq, CET or Pcm.
Thickness Coverage
Maximum plate thickness: TM 150 mm, QT 150 mm (IACS UR W16 Table 3); thicker by special consideration. Note that no TM Ceq limit is given above 100 mm, so thicker H62 plates are normally QT. Typical mill sizes are about 8-150 mm thick, 1500-4000 mm wide and 6000-18000 mm long, subject to mill approval.
Equivalent Steel Grades of ABS/FQ63
| Society / standard | Equivalent grade |
|---|---|
| IACS UR W16 | FH620 |
| LR | LR FH62 |
| CCS | F620 (FH620) |
| GL / DNV / BV / RINA | F620 |
| NK / KR | KF63 / RF63 |
| ASTM A131 | no equivalent (A131 stops at 390 MPa) |
All IACS members apply UR W16, so chemistry and properties are equivalent, but each plate needs a certificate from the vessel's or structure's own society; dual certification is possible when each surveyor witnesses the tests.
FAQ about ABS FQ63 Steel Plate
What is ABS FQ63 steel plate?
An extra-high-strength fine-grain structural steel to ABS Rules for Materials and Welding Part 2 (IACS UR W16 grade FH620), with 620 MPa minimum yield, 700-890 MPa tensile strength and Charpy testing at -60°C [-76°F].
What does FQ63 mean?
F is the toughness class (A 0°C, D -20°C, E -40°C, F -60°C), Q marks the ABS extra-high-strength series and 63 is the yield level in kgf/mm², i.e. 620 N/mm².
What is the yield strength of ABS FQ63?
620 MPa min up to 50 mm, 580 MPa for 50-100 mm and 560 MPa for 100-150 mm. Tensile strength is 700-890 MPa up to 100 mm and 650-830 MPa above.
What are the impact requirements for ABS FQ63?
Charpy V-notch at -60°C [-76°F] with an average of at least 41 J transverse or 62 J longitudinal, for all thicknesses.
What is the maximum carbon equivalent for ABS FQ63?
For plate up to 50 mm, Ceq max is 0.50 (TM), 0.56 (QT); limits rise with thickness as tabulated above.
How is ABS FQ63 delivered?
TM or QT, fully killed and fine-grain treated, within the thickness limits of IACS UR W16 and the mill's ABS approval.
What is the difference between ABS FQ63 and ABS EQ63?
Same strength level; ABS FQ63 is impact tested at -60°C [-76°F] while ABS EQ63 is tested at -40°C [-40°F].
What is ABS FQ63 equivalent to?
LR FH62, CCS F620, GL F620, DNV F620, BV F620, RINA F620, NK KF63 and KR RF63 (IACS FH620). ASTM A131 has no equivalent at this strength.
Is ABS FQ63 weldable?
Yes, with qualified procedures and ABS-approved consumables of the matching 620 MPa (Y62) strength class; preheat is set from Ceq/CET or Pcm, thickness and restraint.
