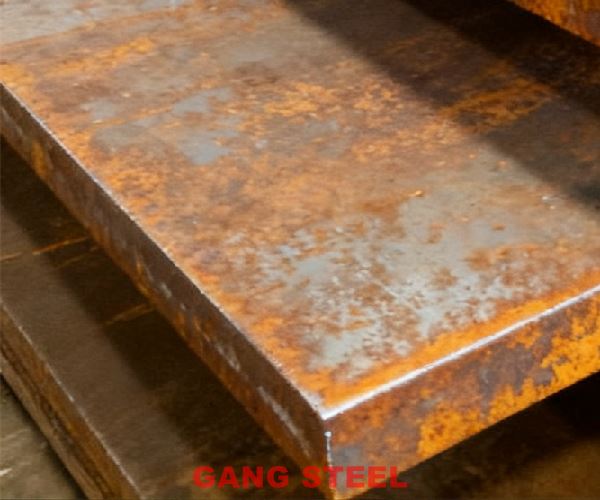

S355ML Specification EN 10025-4 Steel Plate Supplier

Gangsteel – China's Leading Mill-Direct Supplier & Exporter of S355ML Specification EN 10025-4 Steel Plates

Gangsteel is the professional supplier for S355ML specification EN 10025-4 steel plates, providing complete technical data, mill test certificates, and ready stock to meet the strictest project requirements worldwide. We stock over 5,000 tons of S355ML plates in thicknesses 6–200 mm, widths 1500–4200 mm, and lengths up to 18 meters, all produced by TMCP (thermomechanical controlled process) with full compliance to EN 10025-4:2004 (2019 revision).

Every plate includes original EN 10204-3.1/3.2 certificates detailing the full specification, third-party inspection (DNV, ABS, LR, BV, CCS, KR, TÜV, SGS), Z25/Z35 through-thickness quality in stock, and 100 % ultrasonic testing EN 10160 S2/E2 standard.

Fast delivery worldwide in 3–7 days. Full processing services available.

Explore our complete en 10025 4 High Strength Structural Steel series.

What is S355ML Specification EN 10025-4?

S355ML is a thermomechanically rolled (TMCP) weldable fine-grain structural steel specified in EN 10025-4:2004 (current version 2019).

The full specification covers:

Delivery condition: Thermomechanical rolled (M)
Minimum yield strength: 355 MPa (transverse, t ≤ 16 mm)
Tensile strength: 470–630 MPa
Minimum elongation: 22 %
Impact toughness: ≥ 27 J at –50 °C (longitudinal)
Carbon equivalent CEV ≤ 0.39
Fine grain structure guaranteed by Al + Nb + V + Ti microalloying

The specification also includes options for:

Z-quality (through-thickness properties) Z25 or Z35
Improved deformation properties perpendicular to the surface (option 3)
Normalized rolling as alternative delivery condition (by agreement)

S355ML specification is designed for structures requiring high strength combined with excellent low-temperature toughness and good weldability. It is the most widely used grade in EN 10025-4 because it offers the optimal balance between performance and cost.

For detailed grade designation explanation, see S355ML Meaning EN 10025-4 Structural Steel Supplier.

Chemical Composition – Ladle Analysis and Product Analysis Combined

Element	Ladle Max (%)	Product Deviation (%)	Typical Actual (%) – Gangsteel Stock	Role in Specification
C	0.14	+0.02	0.09–0.12	Low C for weldability
Si	0.50	+0.05	0.20–0.40	Deoxidizer
Mn	1.60	+0.10	1.20–1.50	Main strength element
P	0.025	+0.005	≤0.018	Low for toughness
S	0.020	+0.005	≤0.015	Low inclusions
Nb	0.05	+0.01	0.02–0.04	Grain refiner
V	0.10	+0.02	0.04–0.08	Precipitation strengthening
Al min	0.020	+0.030 (total)	0.025–0.045	Grain refiner & deoxidizer
Ti	0.05	+0.03	0.01–0.03	Nitride former
Cr	0.30	+0.05	0.10–0.25	Controlled
Ni	0.50	+0.05	0.20–0.40	Low-temp toughness
Mo	0.10	+0.03	≤0.05	Minor
Cu	0.55	+0.03	0.20–0.35	Deoxidizer
N	0.015	+0.003	≤0.012	Low for properties
CEV max	0.39	N/A	0.32–0.38	Weldability key

Full chemical specification: S355ML Chemical Composition EN 10025-4 Supplier

Mechanical Properties – Full Thickness Range up to 200 mm (Transverse)

Thickness (mm)	ReH min (MPa)	Rm (MPa)	A5 min (%)	KV min (J) at –50 °C longitudinal
≤ 16	355	470–630	22	27
>16 ≤ 40	345	470–630	22	27
>40 ≤ 63	335	470–630	22	27
>63 ≤ 80	325	470–630	22	27
>80 ≤ 100	315	470–630	22	27
>100 ≤ 120	305	450–610	22	27
>120 ≤ 150	295	450–610	22	27
>150 ≤ 200	285–295*	450–610	22	27

Gangsteel guarantees 295 MPa up to 180 mm, 285 MPa to 200 mm.

Hardness: 140–180 HBW Density: 7.85 g/cm³ Full mechanical specification: S355ML Mechanical Properties EN 10025-4 Plate Supplier

Available Specifications & Options

Thickness: 6–200 mm (20–120 mm most popular in stock)
Width: 1500–4200 mm
Length: up to 18 000 mm
Z-quality: Z25 standard, Z35 large stock
NDT: 100 % ultrasonic testing EN 10160 S2/E2 (S3/E3 optional)
Surface: shot-blasted + primer or mill finish
Certification: EN 10204-3.1/3.2, PED, CPR, all major class approvals

Comparison Within EN 10025-4 Family

Grade	Yield (≤16 mm)	Impact Temp	CEV max	Preheat-free (mm)	Typical Use
S275M/ML	275 MPa	–20 / –50 °C	0.38	up to 100	Light structures
S355M	355 MPa	–20 °C	0.39	up to 80	Bridges, machinery
S355ML	355 MPa	–50 °C	0.39	up to 80	Offshore wind, Arctic
S420M/ML	420 MPa	–20 / –50 °C	0.43	up to 60	Heavy cranes
S460M/ML	460 MPa	–20 / –50 °C	0.46	up to 50	High-rise, heavy lifting

S355ML is the best-selling grade worldwide. Full comparison: S355M vs S355ML EN 10025-4 Steel Plate Comparison Supplier

Why Choose Gangsteel for S355ML Specification Plates

Largest S355ML stock in Asia (5,000+ tons ready)
Factory-direct price – 60–120 USD/ton lower than traders
Full processing capability (cutting, beveling, drilling, rolling, priming)
Z35 quality always in stock
Immediate delivery worldwide
Exported to 90+ countries with perfect documentation
One-stop service – stock → processing → shipping

FAQ – Quick Answers

Q1: S355ML vs S355M difference?A: Only impact test temperature. S355ML = –50 °C (≥27 J), S355M = –20 °C (≥40 J). Strength, chemistry, weldability identical.

Q2: Preheating required?A: No preheat up to 80 mm thickness. >80 mm: 75–100 °C max.

Q3: Z35 availability?A: Yes – very large stock of S355ML + Z35 ready for immediate delivery.

Q4: Density and hardness?A: Density 7.85 g/cm³, hardness 140–180 HBW.

Q5: NDT standard?A: 100 % UT EN 10160 S2/E2 included. S3/E3, MT, PT on request.

Q6: Maximum thickness?A: Up to 200 mm with full specification compliance.

Q7: Delivery time?A: Stock material 3–7 days worldwide.

Contact Gangsteel Today

Need S355ML plates to EN 10025-4 specification? Contact us for quotation within 2 hours.

Email: admin@gangsteel.com WhatsApp/WeChat/Mobile: +86 135 9887 9167 Website: https://gangsteel.net/

Gangsteel – Specification Compliance, Delivered Fast.
