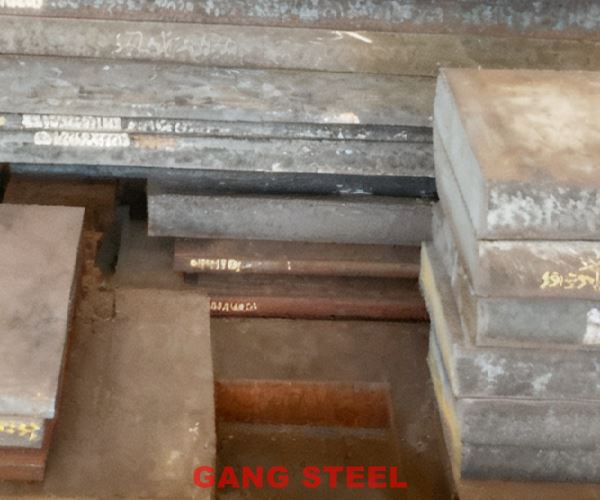

EN 10025-4 S460ML Weldable Fine Grain Plate Supplier

EN 10025-4 S460ML Weldable Fine Grain Plate Supplier

Gangsteel – China's Largest Mill-Direct Supplier & Exporter of EN 10025-4 S460ML Weldable Fine Grain Plates

Gangsteel is the most reliable supplier for EN 10025-4 S460ML weldable fine grain plates, with the largest permanent stock in Asia – over 5,000 tons always ready in thickness 6–200 mm, width 1500–4200 mm, length up to 18 meters. All plates are genuine TMCP (thermomechanical controlled process) produced by top Chinese mills (HBIS, Shougang, Nanjing Steel) with full European approvals (PED 2014/68/EU, CPR 305/2011).

We supply with original EN 10204-3.1/3.2 certificates and third-party inspection (DNV-GL, ABS, LR, BV, CCS, KR, TÜV, SGS). Z25/Z35 through-thickness quality in stock, 100 % ultrasonic testing EN 10160 S2/E2 standard.

Immediate delivery worldwide in 3–7 days. Full processing services: plasma/oxy cutting, beveling, drilling, rolling, priming.

Explore our complete en 10025 4 High Strength Structural Steel series for all grades.

What is EN 10025-4 S460ML Weldable Fine Grain Plate?

EN 10025-4 S460ML is a thermomechanically rolled (TMCP) weldable fine grain structural steel with:

• Minimum yield strength 460 MPa
• Excellent low-temperature toughness ≥ 27 J at –50 °C (longitudinal)
• Very low CEV ≤ 0.48 → outstanding weldability (no preheat up to 80 mm)
• Fine grain structure (ASTM 8–11)

The designation “S460ML” means:

• S= structural steel
• 460= minimum yield strength 460 MPa (transverse, thickness ≤ 16 mm)
• M= thermomechanical rolling (TMCP delivery condition)
• L= low-temperature impact toughness (–50 °C test)

S460ML is the highest-strength low-temperature grade in the EN 10025-4 family that still offers excellent weldability and formability. It is the material of choice when maximum strength-to-weight ratio and –50 °C performance are required.

Chemical Composition – Ladle Analysis (max % unless noted)

Typical Gangsteel actual values: C 0.10–0.14 %, CEV 0.42–0.46 → excellent weldability without preheating up to 80 mm thickness.

Mechanical Properties – Full Thickness Range up to 200 mm (transverse values)

*Gangsteel guarantees higher values in thick plates by agreement.

Hardness: 160–210 HBW Density: 7.85 g/cm³

Available Specifications & Testing

• Thickness: 6–200 mm (20–150 mm most popular in stock)
• Width: 1500–4200 mm
• Length: up to 18 000 mm
• Z-quality: Z25 standard, Z35 large stock
• NDT: 100 % ultrasonic testing EN 10160 S2/E2 (S3/E3 optional)
• Surface: shot-blasted + primer or mill finish
• Certification: EN 10204-3.1/3.2, PED, CPR, all major class approvals

Applications of EN 10025-4 S460ML Plates

S460ML is widely used when maximum strength and low-temperature toughness are required:

• Offshore wind turbine monopiles and jackets
• Arctic oil & gas platforms
• Jack-up rigs and heavy lifting equipment
• High-rise building columns
• Cold-region bridges and infrastructure

Why Choose Gangsteel for S460ML Plates

• Largest S460ML stock in Asia (5,000+ tons ready)
• Factory-direct price – 60–120 USD/ton lower than traders
• Full processing capability (cutting, beveling, drilling, rolling, priming)
• Z35 quality always in stock
• Immediate delivery worldwide
• Exported to 90+ countries with perfect documentation
• One-stop service – stock → processing → shipping

FAQ – Quick Answers

Q1: S460ML vs S460M difference?A: Only impact test temperature. S460ML = –50 °C (≥27 J), S460M = –20 °C (≥40 J). Strength, chemistry, weldability identical.

Q2: Preheating required?A: No preheat up to 80 mm thickness. >80 mm: 75–100 °C max.

Q3: Z35 availability?A: Yes – very large stock of S460ML + Z35 ready for immediate delivery.

Q4: Density and hardness?A: Density 7.85 g/cm³, hardness 160–210 HBW.

Q5: NDT standard?A: 100 % UT EN 10160 S2/E2 included. S3/E3, MT, PT on request.

Q6: Maximum thickness?A: Up to 200 mm with full properties and certification.

Q7: Delivery time?A: Stock material 3–7 days worldwide.

Contact Gangsteel Today

Need EN 10025-4 S460ML plates? Contact us now for best price and fastest delivery.
