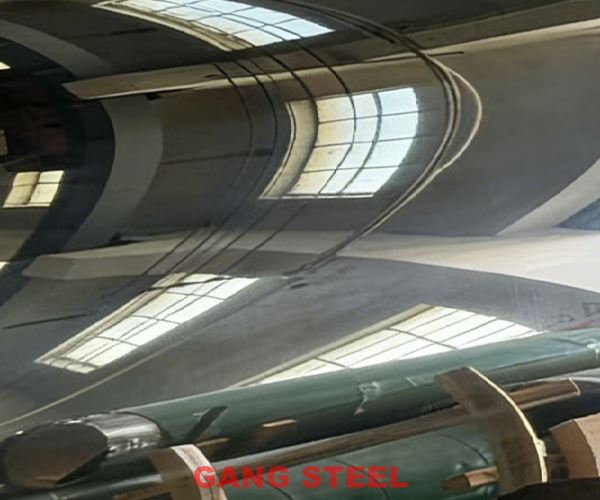

SUS 430 cold rolled stainless steel sheet

SUS 430 Cold Rolled Stainless Steel Sheet

Gangsteel produces SUS 430 cold rolled stainless steel sheet in full compliance with the leading international standards. We can manufacture to any of the following major specifications to meet your exact project requirements:

• JIS G4305 SUS430(Japan)
• ASTM A240 Type 430(USA)
• EN 10088-2 1.4016 / X6Cr17(Europe)
• DIN EN 1.4016(Germany)
• GB/T 3280 10Cr17 / 1Cr17(China)
• BS 1449 430S17(United Kingdom)
• ISO 4954 X6Cr17(International)

Whether you need JIS, ASTM, EN, GB, or any combination of these standards, Gangsteel delivers consistent quality, full traceability, and competitive pricing from our advanced Chinese production facilities.

What Is SUS 430 Cold Rolled Stainless Steel Sheet?

SUS 430 cold rolled stainless steel sheet is a nickel-free ferritic grade (16–18% Cr) that offers an outstanding balance of corrosion resistance, formability, and economy. Produced through precision cold rolling after hot rolling and annealing, the sheet achieves tight thickness tolerances, superior flatness, and a clean surface ideal for stamping, bending, and fabrication. As a straight-chromium alloy, it forms a stable passive oxide layer that protects against atmospheric corrosion while providing excellent thermal conductivity and low thermal expansion — properties that outperform austenitic grades like 304 in heat-management applications.

The absence of nickel makes SUS 430 cold rolled stainless steel sheet highly price-stable and fully recyclable, making it the preferred choice for high-volume manufacturers in appliances, automotive, architecture, and industrial equipment.

Chemical Composition

Our SUS 430 sheets strictly conform to the chemical limits of all listed standards:

This precise chemistry ensures excellent weldability, oxidation resistance up to 815 °C, and long-term durability.

Mechanical Properties

Typical mechanical properties in the annealed condition (standard for cold rolled sheets):

These values deliver outstanding formability for deep drawing, bending, and stamping while maintaining sufficient strength for structural applications.

Available Specifications and Finishes

Gangsteel offers SUS 430 cold rolled stainless steel sheet in the following standard range (custom sizes available upon request):

• Thickness: 0.3 mm – 3.0 mm (up to 6 mm on request)
• Width: 600 mm – 2000 mm (slit or mill edge)
• Length: Up to 6000 mm
• Tolerance: Thickness ±0.03 mm, width ±0.5 mm, flatness ≤8 mm/m

Common finishes include 2B (industrial matte), BA (bright annealed mirror), NO.4 (satin), and HL (hairline). All sheets are protected with PVC/PE film to prevent scratching during transit.

Manufacturing Process at Gangsteel

Our production begins with high-purity AOD-refined material to achieve exact chemistry. Hot rolling is followed by cold rolling on 20-high Sendzimir or 4-high mills for superior thickness uniformity (±0.03 mm). Annealing under controlled atmosphere restores ductility, followed by pickling, skin-passing, and final inspection using eddy-current and AI visual systems. Every batch undergoes third-party testing (SGS, TUV, BV) for full traceability.

For customers requiring the same high-quality material in coil form or other finishes, we recommend our a240 Type_430 stainless steel sheet, EN10088 2 X6Cr17 stainless steel sheet, DIN 1.4016 stainless steel sheet, GB/T 10Cr17 1Cr17 stainless steel sheet, or JIS G4305 SUS 430 stainless steel sheet.

Key Advantages of Gangsteel SUS 430 Cold Rolled Sheet

• Cost efficiency— nickel-free composition reduces price by 30–50% versus SUS304
• Superior thermal properties— higher conductivity and lower expansion than austenitics
• Excellent formability— high ductility for complex deep drawing
• Magnetic— easy automated handling and separation
• Consistent quality— ISO 9001 and IATF 16949 certified processes
• Full customization— any standard, finish, or size on request

Wide Range of Applications

SUS 430 cold rolled stainless steel sheet is widely used in:

• Household appliances (refrigerator doors, washing machine panels, range hoods)
• Automotive trim and exhaust components
• Architectural cladding and elevator interiors
• Kitchen equipment and food processing surfaces
• Heat exchangers, radiant tubes, and industrial conveyors
• Solar panel frames and lighting reflectors

Why Choose Gangsteel?

With decades of experience and state-of-the-art Japanese and European rolling lines, Gangsteel guarantees tight tolerances, superior flatness, and zero-defect surface quality. We maintain large inventory for fast delivery (15–30 days) and offer flexible MOQ starting from 5 tons. Every sheet is accompanied by full mill test certificates and third-party inspection reports.

Contact our technical sales team today for current pricing, samples, or customized specifications. Let Gangsteel be your reliable partner for SUS 430 cold rolled stainless steel sheet.
